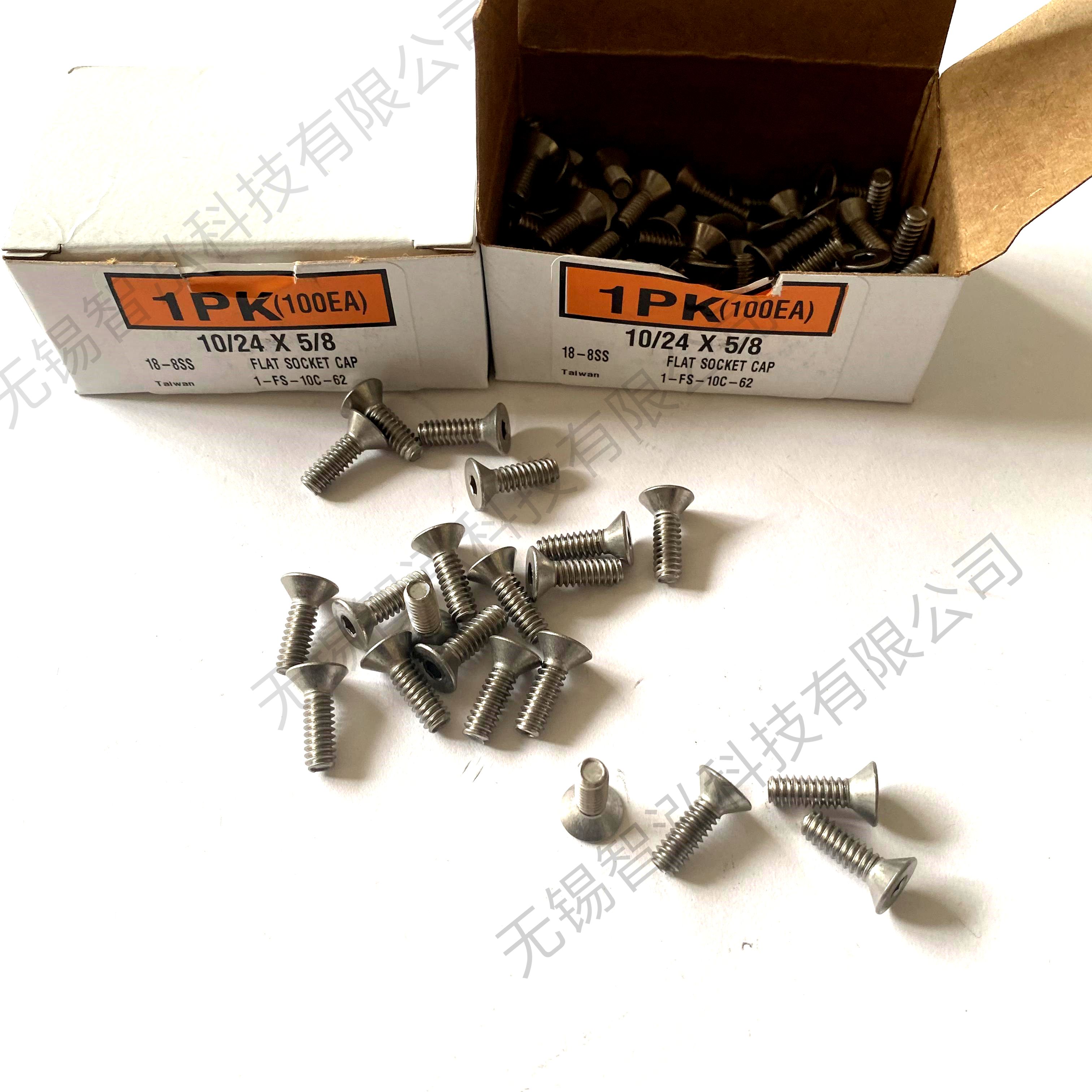

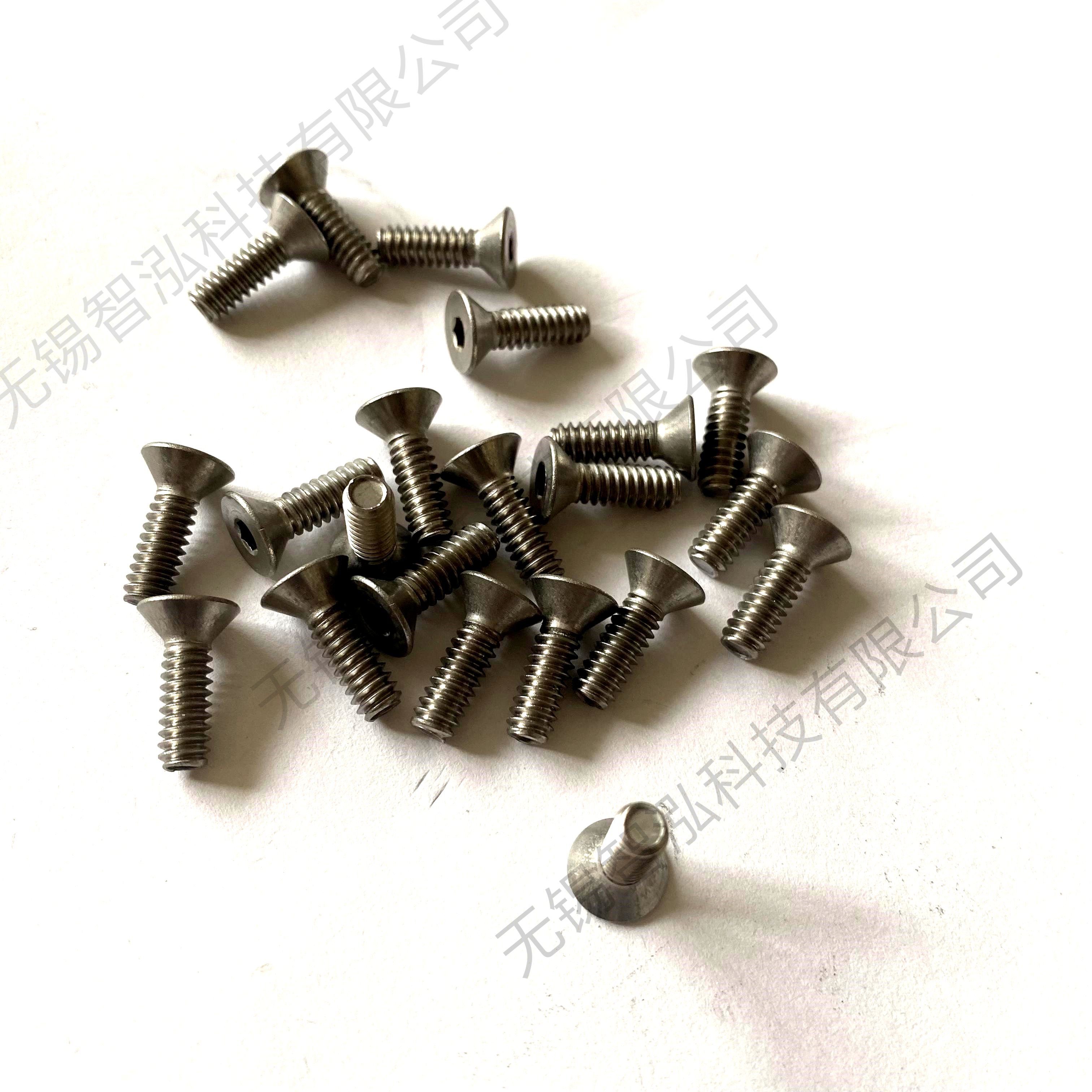

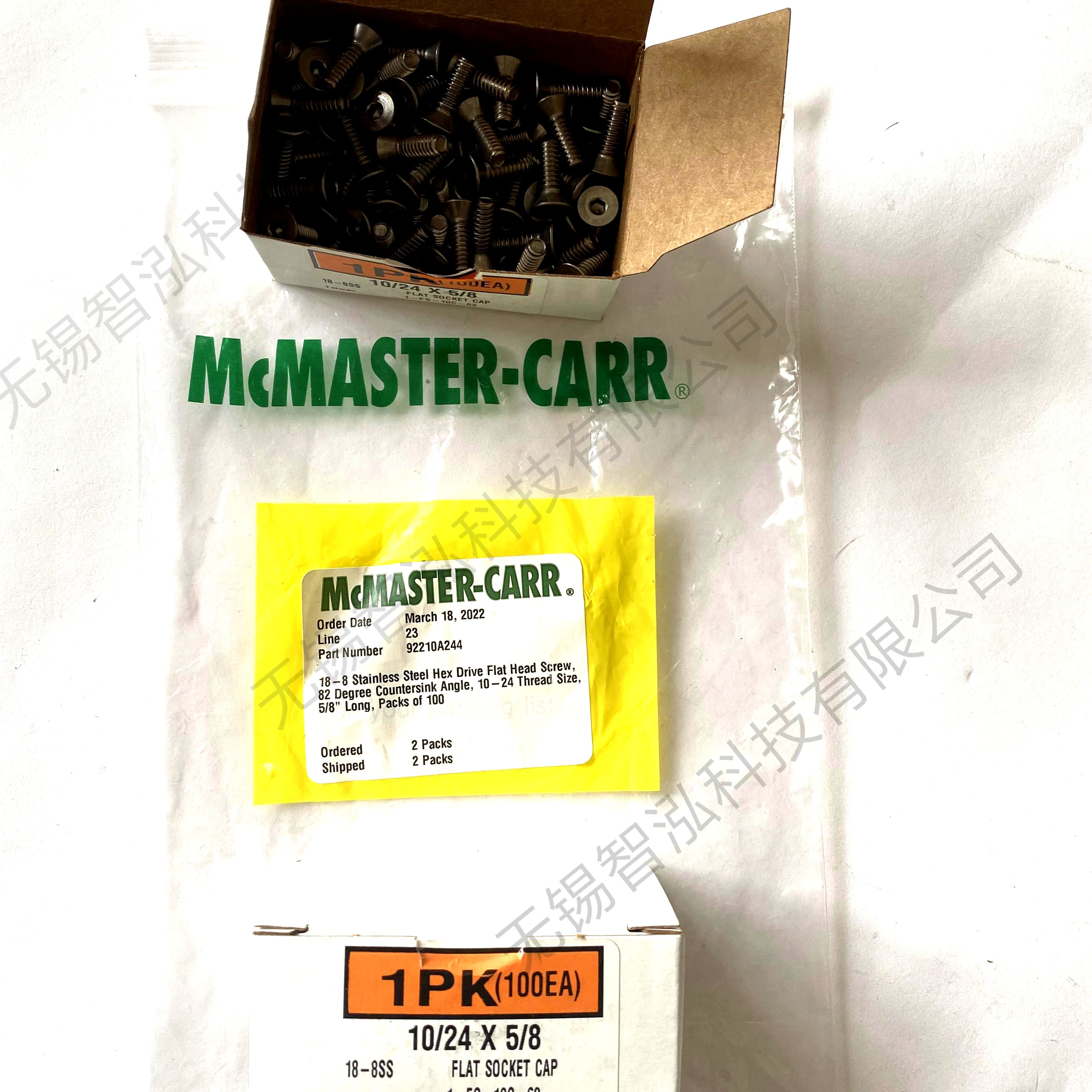

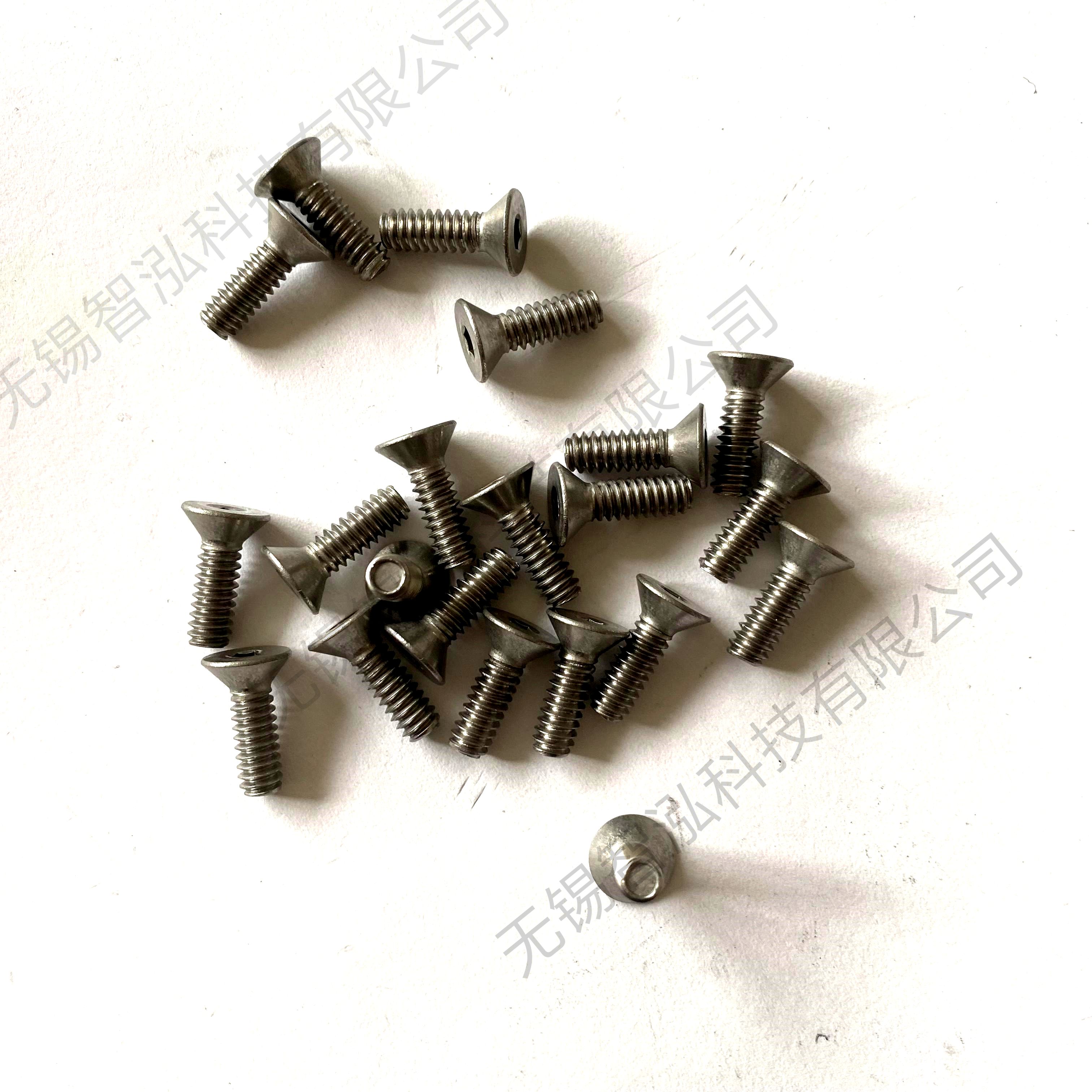

MCMASTER-CARR 18-8不锈钢六角平头螺丝10-24螺纹尺寸92210A244
MCMASTER-CARR 18-8不锈钢六角平头螺丝10-24螺纹尺寸92210A244

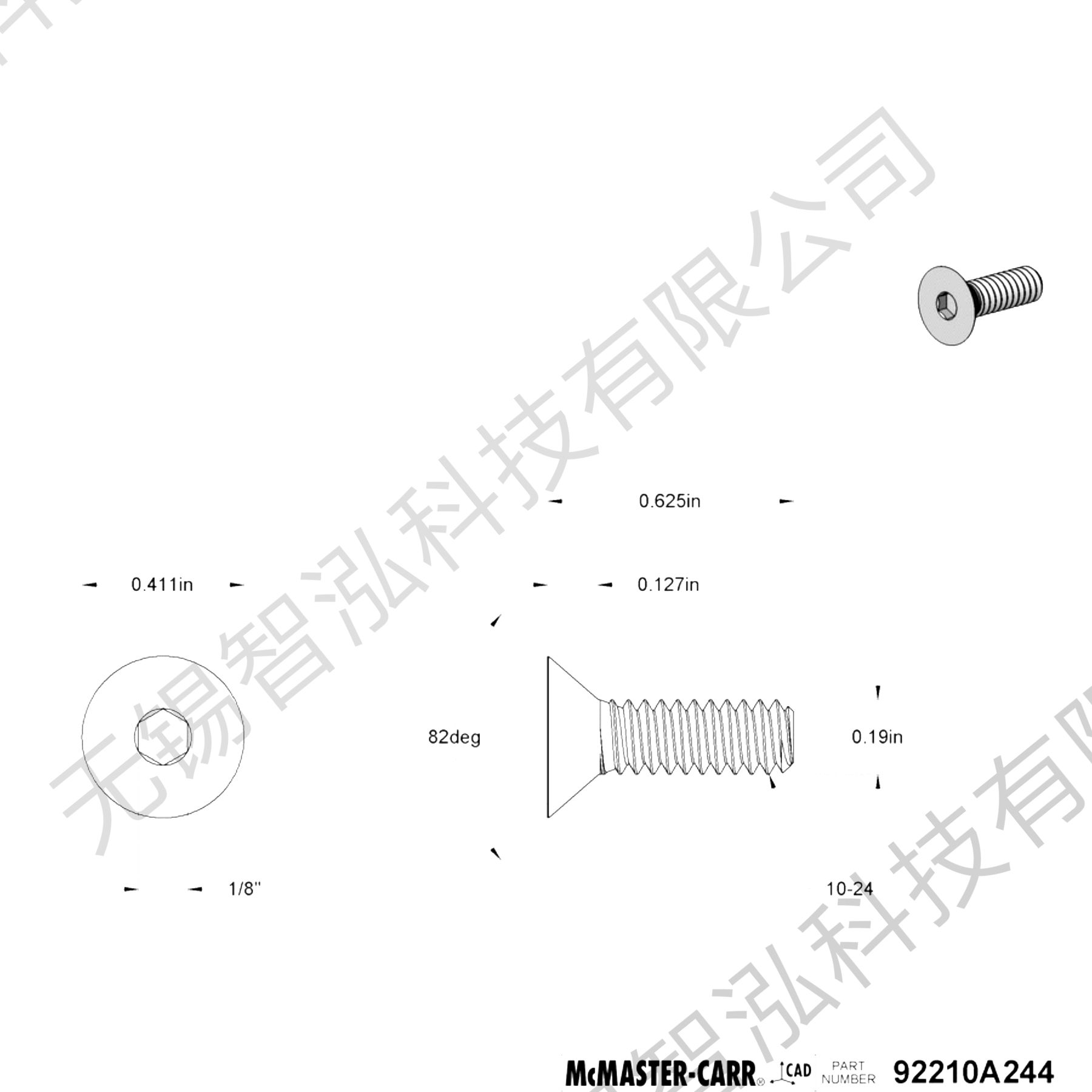

| Thread Size
|
10-24
|
| Length | 5/8" |
| Threading | Fully Threaded |
| Flat Head Profile | Standard |
| Head Diameter | 0.411" |
| Head Height | 0.127" |
| Countersink Angle | 82° |
| Drive Style | Hex
|
| Drive Size | 1/8" |
| Material | 18-8 Stainless Steel |
| Finish | Passivated |
| Hardness | Rockwell B55 |
| Tensile Strength | 70,000 psi |
| Screw Size Decimal Equivalent | 0.190" |
| Thread Type | UNC |
| Thread Spacing
|
Coarse
|
| Thread Fit | Class 3A |
| Thread Direction | Right Hand
|
| Head Type | Flat |
| System of Measurement | Inch |
| Specifications Met | ASME B18.3 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/17/2022, 223 SVHC) Compliant |
| DFARS | Not Specialty Metals Compliant |
声明：无锡智泓科技有限公司作为进出口公司，诚意供应此产品，但绝非是该品牌在中国的代理、分公司以及办事处，请和我们一起守护诚信，拒绝虚假宣传。
