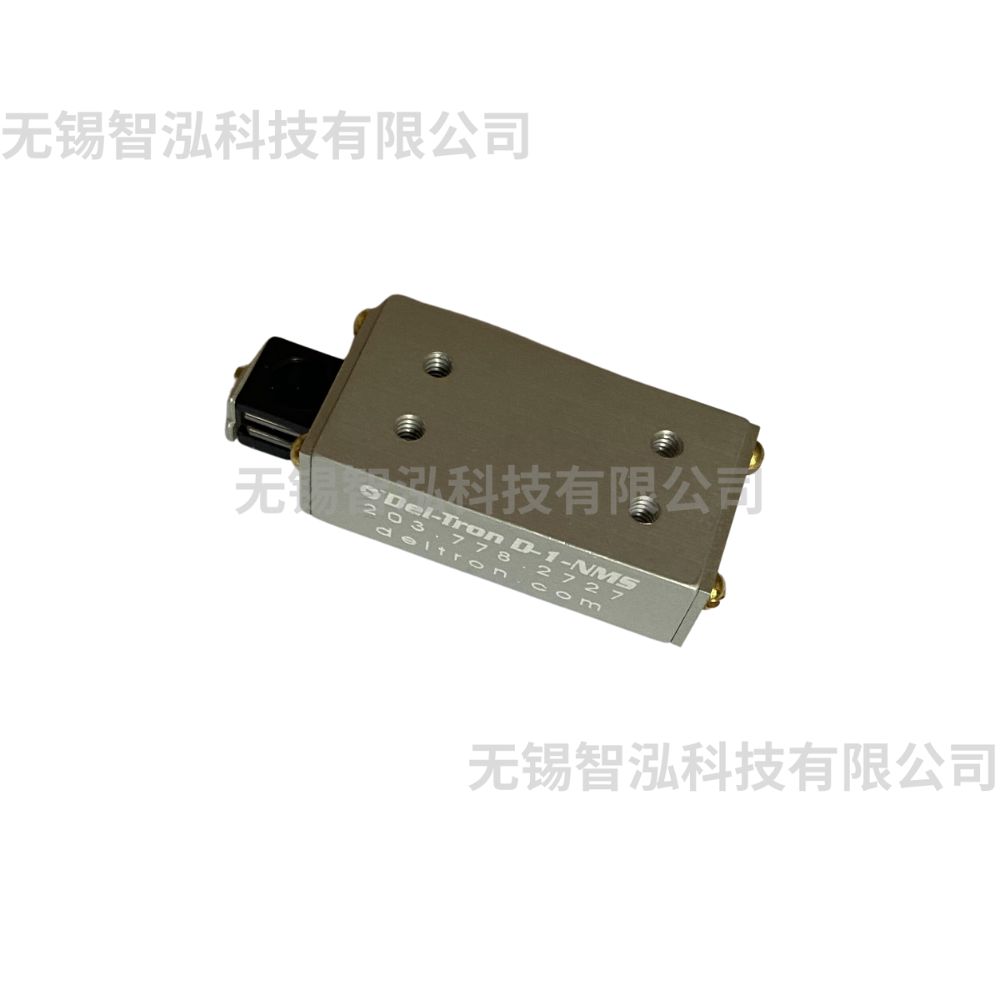

美国Deltron线性滚珠滑轨非磁性英制D-1-NMS 2-56UNC-2B 阳极氧化

All dimensions in inches unless otherwise specified

Carriage Hole
Spacing

Base Dimensions

Model

Travel

Load
(lbs)

Weight
(oz)

Length
A

Height
B

Width
C

D

E

F

G

H

Accuracy
(in/in of travel)

D-1-NMS

0.5

1.2

0.3

1.06

0.32

0.56

0.625

0.218

0.187

0.250

0.750

.0005
